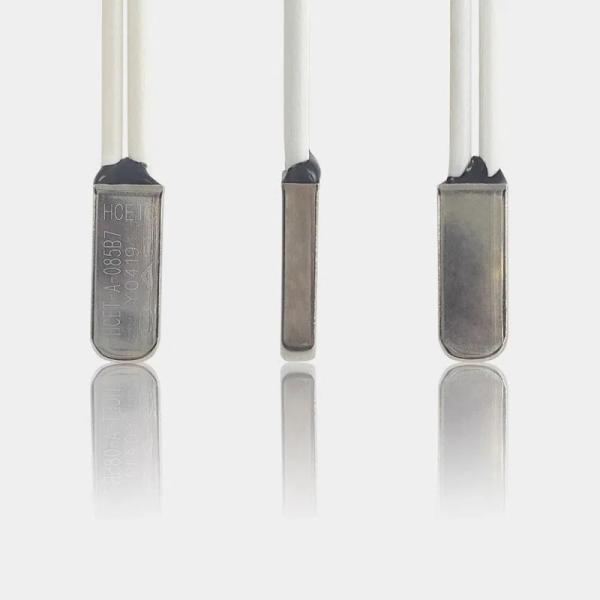

5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff

Name: 5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff
Brand: HCET
Price: 1 USD

Wholesale 5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff from china suppliers

Brand Name : HCET

Model Number : HCET-A5

Certification : CQC, UL, TUV, CE, ROHS

Place of Origin : China

MOQ : 1000

Price : please contact us

Payment Terms : T/T

Supply Ability : 10000000 pcs per month

Delivery Time : 5-7 work days

Packaging Details : 5000 pcs per carton

Product name : TB05/KSD9700 thermal switch

Material : plastic or metal

Temperature range : 35℃~160C

Tolerance : ±3℃,±5℃

Voltage : 250V

Current : 5A/10A

Application : Motors/Appliances/Lighting

Contact Now

HCET KSD9700/TB05 Bimetal Thermal Overload Switch Motor Protector Micro Temperature Cutoff for Motors/Appliances/Lighting

The HCET KSD9700/TB05 is a precision-engineered bimetal thermal overload switch designed for critical protection in motors, home appliances, and industrial equipment. With a compact design (TB05 series) and dual sensitivity to temperature + current, it offers reliable circuit interruption at calibrated temperatures from 35°C to 160°C (±3°C/±5°C tolerance). Rated for 6A/250V AC and 8A/125V AC operations, this UL/VDE/CQC-certified protector features snap-action disc technology for instant response to overheating risks, making it ideal for motor winding protection, transformer cooling systems, and small appliance safety compliance.

Product feature:

Core Protection Technology
Dual-Sensing Safety - Combines temperature AND current monitoring (6A-8A range) for complete overload prevention in motors/pumps.
Military-Grade Precision - ±3℃ thermal calibration accuracy for HVAC/industrial applications.
Instant Trip Mechanism - Snap-action bimetal disc reacts within 2 seconds to abnormal heat buildup.
Global Compliance & Durability
250V AC/24V DC Rating - Universal voltage compatibility for global markets
10,000+ Cycle Endurance - Tested for repetitive motor start-ups and compressor overload scenarios.
Anti-Corrosion Terminals - Nickel-plated contacts resist oxidation in humid climates.
Space-Saving Versatility
15mm Micro Design - Fits tight spaces in power tools, LED drivers, and IoT devices

Electrical Characteristics:

35℃~160C
Temperature Range(Customizable temperature, please contact us.)

±3°℃, ±5℃
Temperature Tolerance

8amps/24 volts DC
6amps/250 volts AC
8amps/125 volts DC
Electrical Specifications

Dimension size

5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff

Product detail

5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff

Application

5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff
